# Responsive, back-pressured services with Akka

Christopher Batey

Lightbend

`@chbatey`

???
- Useful for non Akka projects

---

# About me

* Christopher Batey
* Work @ Lightbend on the Akka team
    * Akka
    * Akka-streams
    * Akka-http
    * Akka persistence for Apache Cassandra
    * Alpakka

???
- Building services rather than libraries/frameworks

---

# Responsive
# Scalable

???
- High level goals
- Everyone: Responsive even for low throughput
- Scalable for those who need it
- Scalable in process: Execution model appropriate
- Scalable across machines
- Resource efficiency

---

# Asynchronous
# Back pressured

???
- Techniques to achieve the goals
- Different/better techniques?
- Async
  - Remaining responsive
- Back pressure/FlowControl
  - Dealing with components that run at different speeds
  - Much more important when moving away from thread per request

---
# Goals

* High level
  * What does async give us?
  * What does flow control give us?
* Concrete tech
  * Flow control with Akka streams
* Demos
  * TCP Client -> TCP Server (slow server)
  * Http Client -> TCP -> Http Server -> TCP -> Apache Cassandra (slow client)

???
- Takeaways for this presentation
- Flow control in your application and between them
- TCP windowing, receive and send buffers, akka streams
- Big point: If the client slows down we stop fetching results
  from the database. No wasted effort. Constant memory footprint

---
# Use case
* HTTP Service, endpoints for:
  * User information from database
  * Getting user activity over a large time span
--

* Requirements
  * Respond in a timely manner, even if it is a failure
  * Don't do any unnecessary work
  * Constant memory footprint

???
-

---
class: center, middle
# Responsive

???
- Single request

---
# Responsiveness
* Control over when your application responds
  * Service time vs response time
  * Queues and buffers
* Dependencies
  * Don't make their problem your problem

--

???

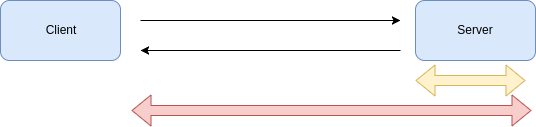

- Response time vs service time
- Yellow is service time
- Red is response time

---
class: center, middle
# Execution models

???
- How does a byte get some the wire to your code?
- What threads are used?
- Single threaded?
- Thread per request?
- Thread per core without blocking IO?
- How to get this wrong even with the right tools?

---
# Thread per request

```scala
def post(request: HttpRequest): HttpResponse = {
  // do something very important
  ???
}
```

???
- Options for this API?
- Hystrix

---
# Thread per request

```scala
def post(request: HttpRequest): HttpResponse = {
   val userId = request.getQueryParam("userId")
   val user: User = getUserFromDatabase(userId)

ExternalService.sendPresentToUser(user)

HttpResponse(200)
 }
```

???
- Giving up the thread of control

---

# Thread per request

```scala
def post(request: HttpRequest): HttpResponse = {
   // nice and quick
   val userId = request.getQueryParam("userId")
   // 5 millis to 10 seconds?
   val user: User = getUserFromDatabase(userId)

// 5 milliss to 10 seconds?
   ExternalService.sendPresentToUser(user)

HttpResponse(200)
 }
```

???
- Pros: very simple programming model
- Socket read timeouts?
- "back pressure" via max number of threads

---
# Demonstrating this

```
http://skillsmatter.com/skillscasts/6520-think-your-software-is-fault-tolerant-prove-it
```

???
- Demonstrates network level timeouts don't work for SLAs

---
# Async

```scala
def request(request: HttpRequest): Future[HttpResponse] = ???
```

* Timeout independent to dependency times
* Option not to block on IO
* Works well for small responses that are ready to go

???
-

---
# Async

```scala
def request(request: HttpRequest): Future[HttpResponse] =
 for {
 user <- lookupUser(request.getQueryParam("userId"))
 _ <- AsyncExternalService.sendPresentToUser(user)
 } yield HttpResponse(200)
```

???
- Dependencies to be async as well
- Benefits even if all deps aren't async

---
# Akka HTTP

```scala
path("user" / Segment) { name =>
  get {
    val user: Future[Option[User]] = DataAccess.lookupUser(name)
    onComplete(user) {
      case Success(Some(u)) => complete(u)
      case Success(None)    => complete(NotFound)
      case Failure(t)       => complete(InternalServerError, t.getMessage)
    }
}
```

???
- Routing DSL
- Lower level API
- Can complete with: value, future, stream
- Need a way to serialise User

---
# Database

```scala
val session = ... // From the Cassandra driver
```

```scala
def lookupUser(userId: UserId): Future[Option[User]] = {
   session.executeAsync("select * from users where user_id = ?", userId).asScala
     .map((rs: ResultSet) => Option(rs.one())
     .map(row => User(
         row.getString("user_id"),
         row.getString("user_name"),
         row.getInt("age"))))
}
```

???
- Async now all the way through
- How do we do a request timeout now?

---
# Akka HTTP

```scala
path("user" / Segment) { name =>
  get {
    withRequestTimeout(500.millis) {
      val user: Future[Option[User]] = DataAccess.lookupUser(name)
      onComplete(user) {
        case Success(Some(u)) => complete(u)
        case Success(None)    => complete(NotFound)
        case Failure(t)       => complete(InternalServerError, t.getMessage)
      }
    }
}
```

???
- Surrounding with a directive

---
class: centre, middle
#  Responsiveness under load

???
- Now assume a large request or a large number of requests
- How to handle?

---
# Playing fair

```

+-----------+
 | |
 +---->| Database |
 | | |
 | +-----------+
 |
 +---------+ +----------+
 | | +---------------> | |
 | Client | | Server |
 | | <---------------+ | |
 +---------+ +----------+
 |
 |
 |
 | +------------+
 | | |
 +------+| Service |
 | |
 +------------+
```

???
- How do we stop the server overloading the service?
- How do we handle the client consuming our response slowly?
- We'll demo this with HTTP / Apache Cassandra

---
# The default

---
# Queueing and/or buffering

* How would this work if Kafka was between the services?

--
.center[![queue](pubsub-half.png)]

???
- Evenly matches the queue would go up and down

---
# Fast publisher

* Without the queue:
  * Down stream gets overwhelmed
  * Publisher has wasted resources

--
.center[![queue](pubsub-full.png)]
--

* Would this work in memory?
* Why produce data no one is ready to consume?

???
- How many of your applications deal with the queue filling up and
  send back back pressure?

---
# Reacting to failure
* Is the consumer slow or down?

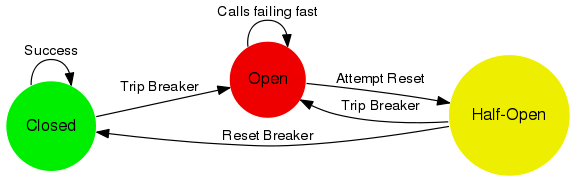

* Circuit breakers

???

- Circuit breakers
- Static throttling?
- Hystrix
- Not acceptable to react, we should prevent!

---

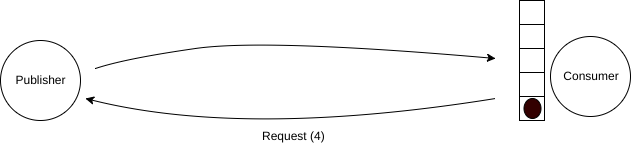

# Flow control

* Dynamically adjust the rate based on demand

???
- Scenarios
  - HTTP to database
  - Kafka to Cassandra
  - Reactive streams
- Subscriber dictates flow, keeping publisher aware of its
  free buffer space

---
# TCP flow control

* Only send data that the other side is expected to handle

???
- How how works
- How to build this into your application

---
# TCP windowing

.center[![queue](tcp-window-initial.png)]
--

.center[![queue](tcp-window-1.png)]
--

.center[![queue](tcp-window-2.png)]
--

.center[![queue](tcp-window-3.png)]

???
- Notes

---
# TCP windowing

---
# TCP windowing

???
- Window fills up, client stops sending
- Heart beats to know when it can start sending again

---
# Akka Streams 101

* Sources
  * Emit elements
    * Iterables
    * Files
    * TCP connections
    * Kafka
--
* Sinks
  * Sends data some where or side effects
    * Side effects
    * Databases
    * TCP connections
--
* Flows
  * Reusable components that transform/filter

???
- Doesn't need to be linear

---
# Akka Streams

```scala
implicit val system = ActorSystem()
implicit val materialiser = ActorMaterializer()
```
--
```scala
val source: Source[Int, NotUsed] = Source(1 to 100)
```
--
```scala
val foldingSink: Sink[Int, Future[Int]] = Sink.fold(0)(_ + _)
```
--
```scala
val ran: Future[Int] = source.runWith(foldingSink)
```
--
```scala
5050
```
---
# Akka Streams

```scala
val source: Source[Int, NotUsed] = Source(1 to 100)
```
--
```scala
val printingSink: Sink[Any, Future[Done]] = Sink.foreach(println)
```
--
```scala
val runPrintingSink: Future[Done] = source.runWith(printingSink)
```

---
# Akka Streams

```scala
val runAgain: Future[Int] = source
     .map(_ * 100)
     .runWith(foldingSink)
```
--
```scala
val flow: Flow[Int, Int, NotUsed] = Flow[Int]
  .filter(_ % 2 == 0)
  .map(_ * 10)
```
--
```scala
val viaAFlow: Source[Int, NotUsed] = source.via(flow)
```

---
class: center, middle
# Putting it all together

HTTP Client -> TCP -> Server -> HTTP Server -> TCP -> Apache Cassandra

???
- Demo time or code on slides

---
# Putting it all together
* Akka HTTP client
* Akka HTTP server
* Custom Cassandra Source

---
# Akka Client

```scala
def eventsForUser(userId: String): Future[Source[Event, NotUsed]] = {
  val response: Future[HttpResponse] = Http().singleRequest(
    HttpRequest(uri = s"http://localhost:8080/user/tracking/$userId")
  )

response.map {
    case HttpResponse(StatusCodes.OK, headers, entity, _) =>
      val responseBytes: Source[ByteString, Any] = entity.dataBytes

responseBytes.via(Framing.delimiter(
        ByteString("\n"), maximumFrameLength = 100, allowTruncation = true))
        .map(_.utf8String.parseJson.convertTo[Event])
        .mapMaterializedValue(_ => NotUsed)
  }
}
```

???
- Break down Future[Source[Event, NotUsed]]
- responseBytes is a Source!
- Describe framing

---
# Akka Client

```scala
case HttpResponse(StatusCodes.OK, headers, entity, _) =>
      val responseBytes: Source[ByteString, Any] = entity.dataBytes
```
--

```scala
responseBytes.via(Framing.delimiter(
    ByteString("\n"), maximumFrameLength = 100, allowTruncation = true))
    .map(_.utf8String.parseJson.convertTo[Event])
```

---
# Akka Client

response.map {
    case HttpResponse(StatusCodes.OK, headers, entity, _) =>
      val responseBytes: Source[ByteString, Any] = entity.dataBytes

---
# Akka Server

```scala
val bound: Future[Http.ServerBinding] =
    Http().bindAndHandle(route, "localhost", 8080)
```
--
```scala
 def bindAndHandle(
    handler:   Flow[HttpRequest, HttpResponse, Any],
    interface: String,
    port: Int)
```
--
```scala
val streamingRoute = path("user" / "tracking" / Segment) { name: String =>

val source: Source[Domain.Event, NotUsed] = DataAccess.lookupEvents(name)

val asJson: Source[ByteString, NotUsed] = source.map(e =>
     ByteString(s"${e.toJson.toString()}\n", StandardCharsets.UTF_8))

complete(HttpEntity(ContentTypes.`application/json`, asJson))
 }
```

---
# Cassandra Source

```scala
// userByIdCQL = "select * from user_tracking where name = ?"
@deprecated("Sorry we did this", "always")
def lookupEvents1(userId: UserId): Future[Seq[Event]] = {
  session.executeAsync(userByIdCQL, userId).asScala
    .map(rs => rs.all().asScala.map(row => {
      Event(
        row.getString("user_id"),
        UUIDs.unixTimestamp(row.getUUID("time")),
        row.getString("event"))
    }))
}
```
---
# Cassandra Source

```scala
def lookupEvents(userId: UserId): Source[Event, NotUsed] = {
    CassandraSource(userByIdCQL, userId)(session)
      .map(row => Event(
        row.getString("user_id"),
        UUIDs.unixTimestamp(row.getUUID("time")),
        row.getString("event")))
  }

```

---
# Cassandra Source

```scala
class CassandraSource(statement: Statement, session: Session)
                                 extends GraphStage[SourceShape[Row]] {

override def createLogic(inheritedAttributes: Attributes): GraphStageLogic =
    new GraphStageLogic(shape) with StageLogging {

override def preStart(): Unit = {
         // do initial query
      }

setHandler(
        out,
        new OutHandler {
          override def onPull(): Unit = {
             // Demand from the sink
          }
        }
      )
    }
}
```

---
# Cassandra Source: Starting
```scala
override def preStart(): Unit = {
    implicit val ec = materializer.executionContext
    fetchCB = getAsyncCallback[Try[ResultSet]](tryPush)
    // set fetch size to something small
    session.executeAsync(statement).asScala.onComplete(fetchCB.invoke)
}
```

---
# Cassandra Source: When query completes

```scala
def tryPush(resultSet: Try[ResultSet]): Unit = resultSet match {
    case Success(rs) =>
      lastResult = Some(rs)
      if (rs.getAvailableWithoutFetching > 0) {
        if (isAvailable(out)) {
          push(out, rs.one())
        }
      } else {
        completeStage()
      }
    case Failure(failure) => failStage(failure)
  }
}
```

---
# Cassandra Source: Starting
```scala
// val rs: Option[ResultSet]
setHandler(
  out,
  new OutHandler {
    override def onPull(): Unit = {
      lastResult match {
        case Some(rs) if rs.getAvailableWithoutFetching > 0 =>
          push(out, rs.one())
        case Some(rs) if rs.isExhausted =>
          completeStage()
        case Some(rs) =>
          log.info("Fetching more results from Cassandra")
          rs.fetchMoreResults().asScala.onComplete(fetchCB.invoke)
        case None =>
      }
    }
  }
)
```

???
- Demo time or code on slides

---
class: center, middle
# Demo time

---
# Demo summary

* TCP slow server
  * TCP buffers fill up
  * Client stop doing work
--

* HTTP slow client
  * Client makes request for a large payload
  * TCP buffers fill up
  * Server *stops* getting data from database
  * Client then demands more
  * Everything starts flowing

---
# Summary
* Flow control can flow through the network into your app
  * Prevent your applications from being overloaded
  * Save CPU cycles
--

* Akka streams is one way to do it in your application
--

* Take advantage of TCP's flow control

---
class: center, middle

# Thanks!
Code and slides at `chbatey/akka-streams-examples` on GitHub

---
# Questions?
