Responsive, back-pressured services with Akka

Christopher Batey
@chbatey

Akka toolkit

Actor model

Clustering

Persistence (Event Sourcing)

HTTP

Streams

Responsive

  • For a single request
  • Remain responsive under load

Scalable

  • Single process scalability or resource efficiency
  • Multi node scalability

Asynchronous

  • Programming model
    • CompletableFuture from the JDK
    • Scala Futures
    • Actors and Streams from Akka
    • Observables and Flowables from RxJava
  • Network/IO
    • Network request use a Thread?
    • File system request use a Thread?

Back pressure

  • Fast producers overload slow consumers?
  • How is demand signalled?
  • Rate of pulling data into memory from database?

Presentation take aways

  • What does async give us?
  • What does flow control give us?
  • What is the reactive streams specification?
  • Flow control with Akka streams
  • Http Client -> TCP -> Http Server -> TCP -> Apache Cassandra (slow client)

Use case

  • HTTP Service, endpoints for:
    • User information from database
    • Getting user activity over a large time span

Requirements

  • Respond in a timely manner, even if it is a failure
  • Don’t do any unnecessary work
  • Constant memory footprint

Execution Models

Traditional synchronous model

class MyService {
  public Result performTask(Task task) throws Exception {
    // ... do work
  }
}
for (Task task: tasks) {
  Result result = service.performTask(task);
  // Handle result...
}

Asynchronous actor approach

static class MyActor extends AbstractActor {
  @Override
  public Receive createReceive() {
    return receiveBuilder()
            .match(Task.class, task -> { /* do work */ })
            .build();
  }
}
for (Task task: tasks) {
  actor.tell(task, noSender());
}
class MyActor extends Actor {
  override def receive = {
    case Task(/*params*/) ⇒ /* do work */
  }
}
for (task <- tasks) {
  actor ! task
}
def post(request: HttpRequest): HttpResponse = {
  val userId = request.getQueryParam("userId")
  val user: User = getUserFromDatabase(userId)

  ExternalService.sendPresentToUser(user)

  HttpResponse(200)
}
HttpResponse post(HttpRequest request) {
  String userId = request.getQueryParam("userId");
  Domain.User user = getUserFromDatabase(userId);
  ExternalService.sendPresentToUser(user);
  return new HttpResponse(200);
}
def post(request: HttpRequest): HttpResponse = {
  // nice and quick
  val userId = request.getQueryParam("userId")
  // 5 millis to 10 seconds?
  val user: User = getUserFromDatabase(userId)

  // 5 millis to 10 seconds?
  ExternalService.sendPresentToUser(user)

  HttpResponse(200)
}
private HttpResponse post(HttpRequest request) {
  // nice and quick
  String userId = request.getQueryParam("userId");
  // 5 millis to 10 seconds?
  Domain.User user = getUserFromDatabase(userId);

  // 5 millis to 10 seconds?
  ExternalService.sendPresentToUser(user);

  return new HttpResponse(200);
}

Asynchronous

def request(request: HttpRequest): Future[HttpResponse] = ???
CompletableFuture<HttpResponse> post(HttpRequest request)
  • Timeout independent to dependency times
  • Option not to block on IO
  • Works well for small responses that are ready to go
def request(request: HttpRequest): Future[HttpResponse] =
  for {
    user <- lookupUser(request.getQueryParam("userId"))
    _ <- AsyncExternalService.sendPresentToUser(user)
  } yield HttpResponse(200)
CompletableFuture<HttpResponse> request(HttpRequest request) {
  return wf.lookupUser(request.getQueryParam("id"))
      .thenCompose(user -> wf.sendPresentToUser(user))
      .thenApply(v -> new HttpResponse(200));
}

Akka HTTP

path("user" / Segment) { name =>
  get {
    withRequestTimeout(500.millis) {
      val user: Future[Option[User]] = DataAccess.lookupUser(name)
      onComplete(user) {
        case Success(None) => complete(StatusCodes.NotFound)
        case Success(Some(u)) => complete(u)
        case Failure(t) => complete(StatusCodes.InternalServerError, t.getMessage)
      }
    }
  }
}
get(() -> {
    CompletableFuture<Optional<User>> user =
      dataAccess.lookupUser(id);
    return onSuccess(user, (Optional<User> opUser) ->
      opUser.map(u -> complete(u.serialise()))
            .orElse(complete(StatusCodes.NOT_FOUND)));
  }

Akka HTTP

path("user" / Segment) { name =>
  get {
    withRequestTimeout(500.millis) {
      val user: Future[Option[User]] = DataAccess.lookupUser(name)
      onComplete(user) {
        case Success(None) => complete(StatusCodes.NotFound)
        case Success(Some(u)) => complete(u)
        case Failure(t) => complete(StatusCodes.InternalServerError, t.getMessage)
      }
    }
  }
}
def lookupUser(userId: UserId): Future[Option[User]] =
  session.executeAsync("select * from users where user_id = ?", userId).asScala
    .map((rs: ResultSet) => Option(rs.one())
      .map(row => User(
        row.getString("user_id"),
        row.getString("user_name"),
        row.getInt("age"))))
CompletableFuture<Optional<User>> lookupUser(String userId) {
  CompletableFuture<ResultSet> rs = toCompletableFuture(
    session.executeAsync(CQL, userId));

  CompletableFuture<Optional<User>> user =
    rs.thenApply((ResultSet rSet) ->
      Optional.ofNullable(rSet.one())
        .map((Row row) -> new User(
          row.getString("user_id"),
          row.getString("user_name"),
          row.getInt("age")))
    );

  return user;
}

Responsiveness under load

Playing fair

OutOfMemoryError

Queueing and/or buffering

  • How would this work if Kafka was between the services?

queue

Fast publisher

  • Without the queue:
  • Down stream gets overwhelmed
  • Publisher has wasted resources

queue

Reacting to failure

  • Is the consumer slow or down?
  • Circuit breakers

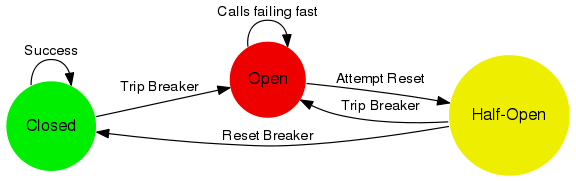

Circuit breaker

Flow control

  • Dynamically adjust the rate based on demand

queue

Reactive Streams

So far the good news…

static class MyActor extends AbstractActor {
  @Override
  public Receive createReceive() {
    return receiveBuilder()
            .match(Task.class, task -> { /* do work */ })
            .build();
  }
}
for (Task task: tasks) {
  actor.tell(task, noSender());
}
class MyActor extends Actor {
  override def receive = {
    case Task(/*params*/) ⇒ /* do work */
  }
}
for (task <- tasks) {
  actor ! task
}

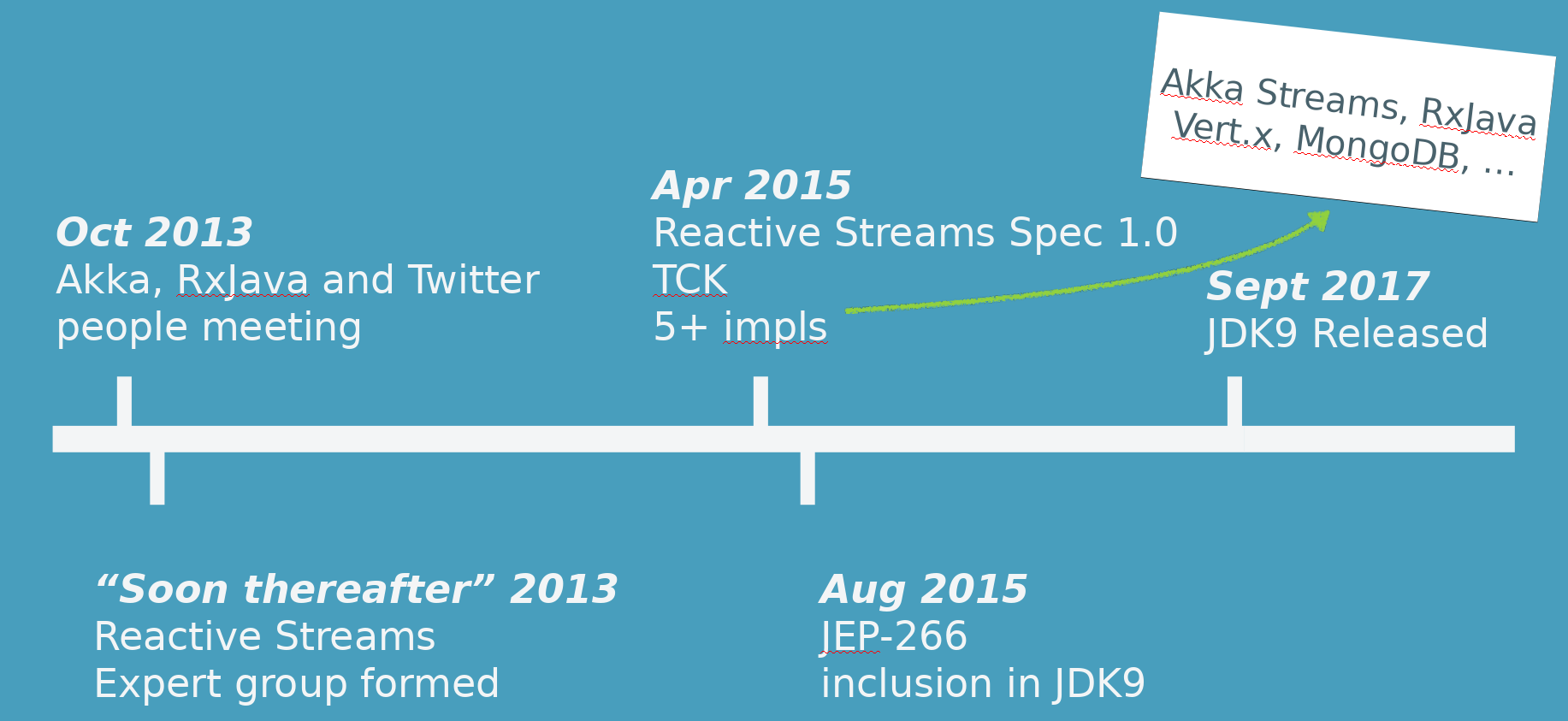

Reactive Streams Timeline

Reactive Streams Timeline

Reactive Streams Scope

Reactive Streams is an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure. This encompasses efforts aimed at runtime environments (JVM and JavaScript) as well as network protocols

http://www.reactive-streams.org

java.util.concurrent.Flow

public interface Publisher<T> {
  public void subscribe(Subscriber<? super T> s);
}
public interface Subscriber<T> {
  public void onSubscribe(Subscription s);
  public void onNext(T t);
  public void onError(Throwable t);
  public void onComplete();
}
public interface Subscription {
  public void request(long n);
  public void cancel();
}
public interface Processor<T, R> extends Subscriber<T>, Publisher<R> {
}

Availablility

Included in JDK9

No JDK9? No problem!

<dependency>
  <groupId>org.reactivestreams</groupId>
  <artifactId>reactive-streams</artifactId>
  <version>1.0.2</version>
</dependency>

Akka Streams

Source, Flow and Sink

Source.range(0, 20000000);
Flow.fromFunction(n -> n.toString());
Sink.foreach(str -> System.out.println(str));
Source<Integer, NotUsed> source =
  Source.range(0, 20000000);
Flow<Integer, String, NotUsed> flow =
  Flow.fromFunction(n -> n.toString());
Sink<String, CompletionStage<Done>> sink =
  Sink.foreach(str -> System.out.println(str));
RunnableGraph<NotUsed> runnable =
  source.via(flow).to(sink);
ActorSystem system = ActorSystem.create();
Materializer materializer = ActorMaterializer.create(system);

runnable.run(materializer);
val source = Source(0 to 20000000)
val flow = Flow[Int].map(_.toString())
val sink = Sink.foreach[String](println(_))
val runnable = source.via(flow).to(sink)
implicit val system = ActorSystem()
implicit val mat = ActorMaterializer()

runnable.run()

Java:

Source.range(0, 20000000)
  .map(Object::toString)
  .runForeach(System.out::println, materializer);

Scala:

Source(0 to 20000000)
  .map(_.toString)
  .runForeach(println)

Materialization

RunnableGraph<NotUsed> graph = Source.range(0, 20000000)
  .map(Object::toString)
  .to(Sink.foreach(str -> System.out.println(str)));

ActorSystem system = ActorSystem.create();
Materializer materializer = ActorMaterializer.create(system);

NotUsed n1 = graph.run(materializer);
NotUsed n2 = graph.run(materializer);
val graph = Source(0 to 20000000)
  .map(_.toString)
  .to(Sink.foreach(println))

implicit val system = ActorSystem()
implicit val materializer = ActorMaterializer()

val n1: NotUsed = graph.run()
val n2: NotUsed = graph.run()

Actor materialization

Source.range(1, 3)
  .map(x -> x + 1)
  .map(x -> x * 2)
  .to(Sink.reduce((x, y) -> x + y));
Source(1 to 3)
  .map(x => x + 1)
  .map(x => x * 2)
  .to(Sink.reduce[Int](_ + _))

Source, Flow and Sink

Fusing

Source.range(1, 3)
  .map(x -> x + 1).async()
  .map(x -> x * 2)
  .to(Sink.reduce((x, y) -> x + y));
Source(1 to 3)
  .map(x => x + 1).async
  .map(x => x * 2)
  .to(Sink.reduce[Int](_ + _))

Source, Flow and Sink

Fusing

Source.range(1, 3)
  .map(x -> x + 1)
  .mapAsync(5, n -> CompletableFuture.completedFuture(n * 2))
  .to(Sink.reduce((x, y) -> x + y));
Source(1 to 3)
  .map(x => x + 1)
  .mapAsync(5)(n => Future.successful(n * 2))
  .to(Sink.reduce[Int](_ + _))

Source, Flow and Sink

Backpressure propagation

Demand is signalled across async boundaries

Backpressure across async boundary

Backpressure propagation

Thanks to Reactive Streams, across different libraries:

Backpressure across async boundary

Backpressure propagation

Often also possible across external protocols, i.e. TCP:

TCP window

TCP window

Backpressure propagation

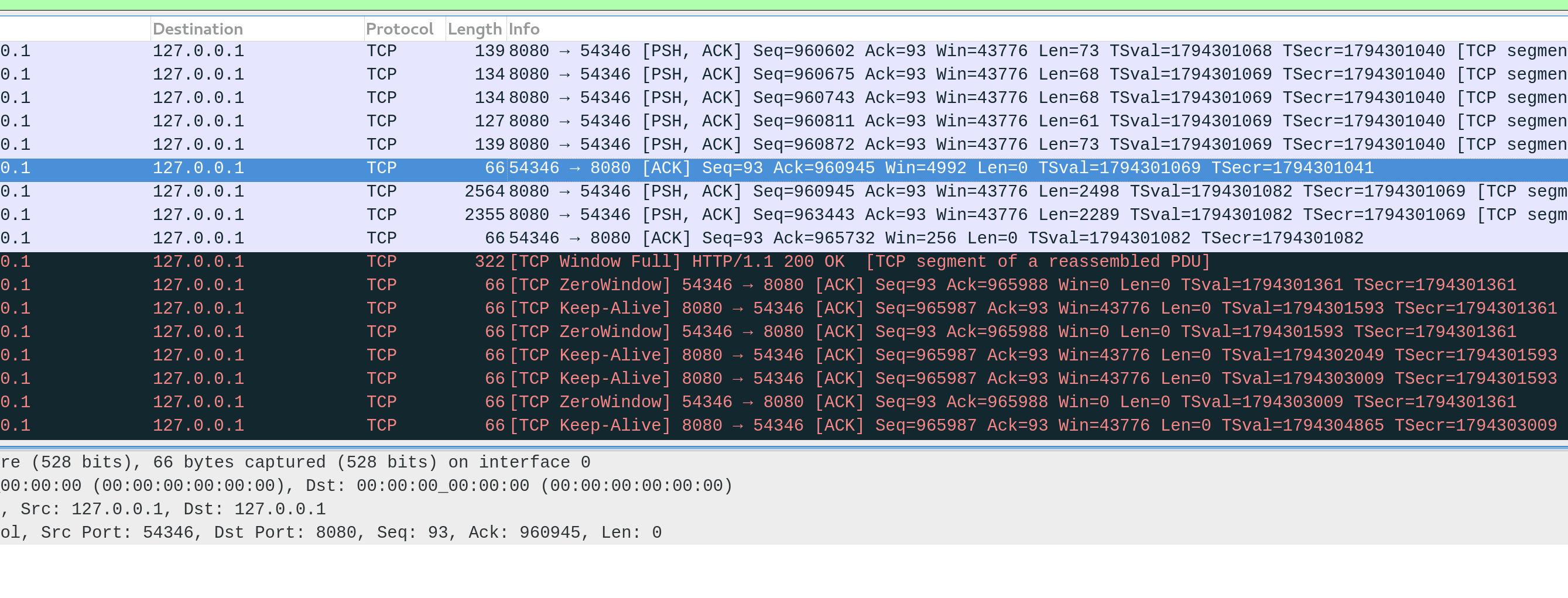

Can be seen in e.g. wireshark:

Wireshark backpressure

TCP windowing

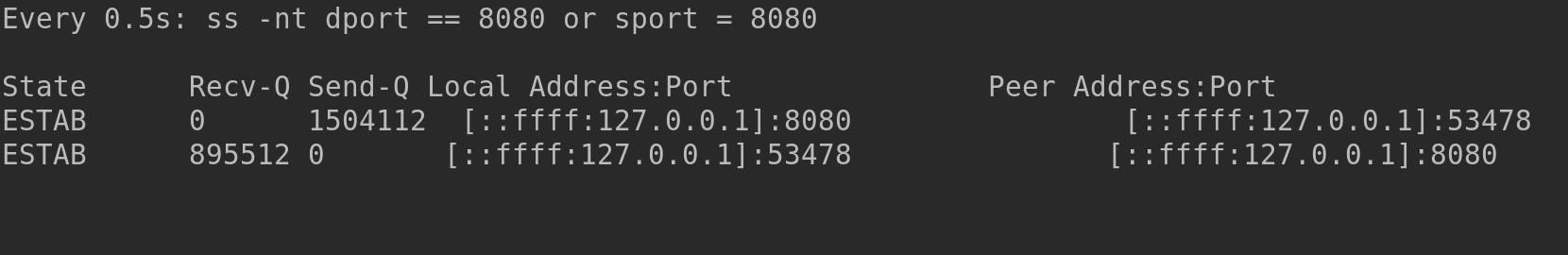

SS

Putting it all together

HTTP Client -> TCP -> Server -> HTTP Server -> TCP -> Apache Cassandra

Putting it all together

  • Akka HTTP client
  • Akka HTTP server
  • Alpakka

Akka Client

val response: Future[HttpResponse] = Http().singleRequest(
  HttpRequest(uri = s"http://localhost:8080/user/tracking/$userId")
)
response.map {
  case HttpResponse(StatusCodes.OK, headers, entity, _) =>

    val response: Source[ByteString, _] = entity.dataBytes

    response.via(Framing.delimiter(
      ByteString("\n"), maximumFrameLength = 100, allowTruncation = true))
      .map(_.utf8String.parseJson.convertTo[Event])
      .mapMaterializedValue(_ => NotUsed)
}
val response: Future[HttpResponse] = Http().singleRequest(
  HttpRequest(uri = s"http://localhost:8080/user/tracking/$userId")
)
response.map {
  case HttpResponse(StatusCodes.OK, headers, entity, _) =>

    val response: Source[ByteString, _] = entity.dataBytes

    response.via(Framing.delimiter(
      ByteString("\n"), maximumFrameLength = 100, allowTruncation = true))
      .map(_.utf8String.parseJson.convertTo[Event])
      .mapMaterializedValue(_ => NotUsed)
}

Akka Server

val bound: Future[Http.ServerBinding] =
    Http().bindAndHandle(route, "localhost", 8080)
 def bindAndHandle(
    handler:   Flow[HttpRequest, HttpResponse, Any],
    interface: String,
    port: Int)

Akka Server

val streamingRoute = path("user" / "tracking" / Segment) { name: String =>
  val source: Source[Event, NotUsed] =
    DataAccess.lookupEvents(name)
  val asJson: Source[ByteString, NotUsed] = source.map(e =>
    ByteString(s"${e.toJson.toString()}\n",
      StandardCharsets.UTF_8))

  complete(HttpEntity(ContentTypes.`application/json`, asJson))
}
val streamingRoute = path("user" / "tracking" / Segment) { name: String =>
  val source: Source[Event, NotUsed] =
    DataAccess.lookupEvents(name)
  val asJson: Source[ByteString, NotUsed] = source.map(e =>
    ByteString(s"${e.toJson.toString()}\n",
      StandardCharsets.UTF_8))

  complete(HttpEntity(ContentTypes.`application/json`, asJson))
}

Cassandra Source

CassandraSource(new SimpleStatement(
      "select * from user_tracking where user_id = ?", userId))(session)
     .map(row => Event(
       row.getString("user_id"),
       UUIDs.unixTimestamp(row.getUUID("time")),
       row.getString("event")))

Demo time

Demo summary

  • HTTP slow client
    • Client makes request for a large payload
    • TCP buffers fill up
    • Server stops getting data from database
    • Client then demands more
    • Everything starts flowing

Happy hAkking!

Slides & Code
github.com/chbatey/akka-streams-flow-control-example
Docs & QuickStarts
akka.io, developer.lightbend.com/start
Community
gitter.im/akka/akka
Tweet
@akkateam, @chbatey

Questions?

Java
